About Cellular Ultrasonic Water Meter DN25 (1")
Physical Specifications

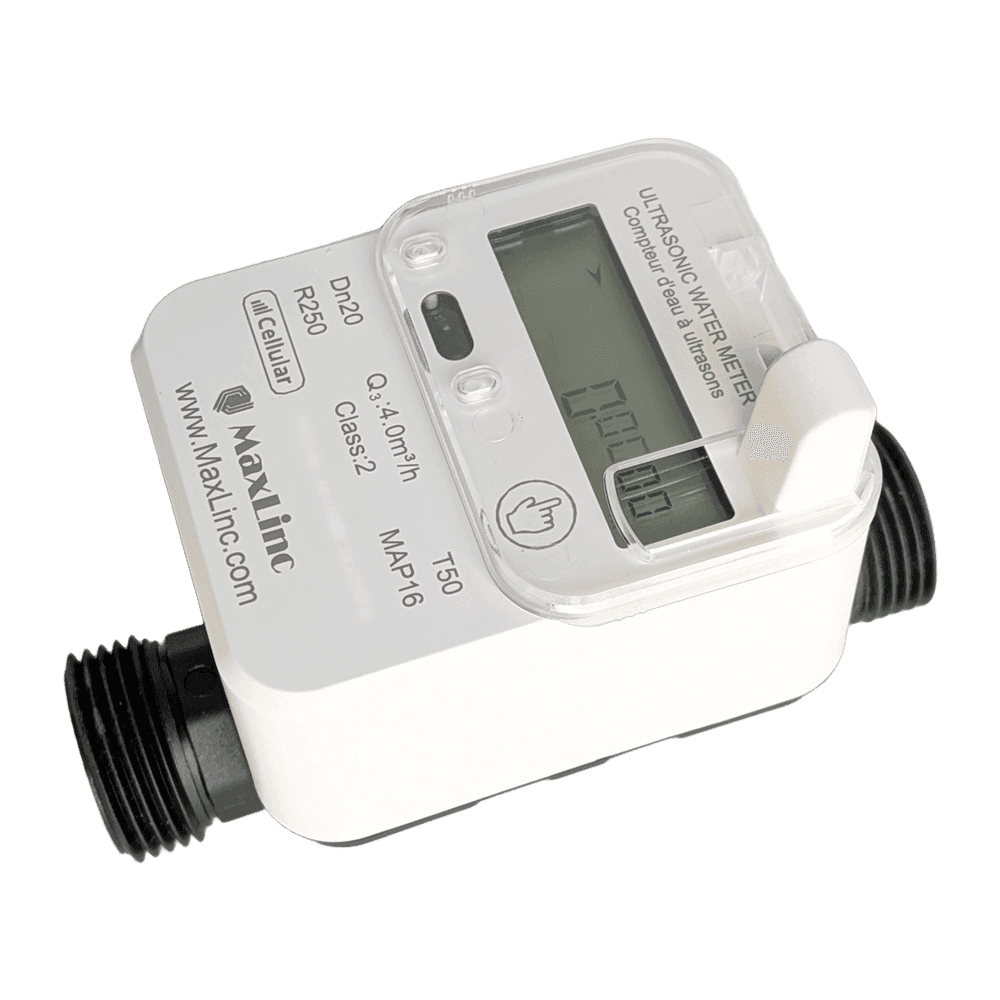

Cellular Ultrasonic Water Meter DN25 (1")
- No subscription for 5 years, then $1/month
- Unlimited international data (built-in eSIM)
- Online out of the box, about a minute to set up
Select size
In-stock orders ship within 3 business days (by UPS to the US). Free shipping over $100 to Canada and the US. Shipping elsewhere? Email Support@MaxLinc.com.
What It Measures
Water Consumption
Hourly readings, uploaded once a day, 0.0001 m³ (0.1 L) resolution
Flow Rate
From 4 L/h start flow up to 7.875 m³/h (Q4)
Reverse Flow
Two-way metering with reverse-flow detection
Leak Detection
Leak-detection algorithm with alarms, plus consumption alarms
Water Cost
Your water price, with separate hot- and cold-season rates
Technical Specifications
Both sizes share the same electronics, ratings and battery. Full installation guidance is in the user manual.
- Size
- DN25 (1")
- Connection thread (male)
- G1¼"
- Nominal flow (Q3)
- 6.3 m³/h · 27.7 gpm
- Max flow (Q4)
- 7.875 m³/h · 34.7 gpm
- Start flow
- 4 L/h · 1.06 gal/h
- Measurement
- Ultrasonic transit-time, no moving parts
- Accuracy
- Class 2 (ISO 4064 / OIML R49)
- Metrological range
- R250 standard (R400 available)
- Resolution
- 0.0001 m³ (0.1 L · 0.026 gal)
- Metering
- Two-way, with reverse-flow detection
- Water temperature
- 0.1–50 °C (32–122 °F), class T30/T50
- Max pressure
- MAP16, 16 bar (232 psi)
- Operating ambient
- −25 to +55 °C (−13 to +131 °F)
- Ingress protection
- IP68, submersible / buried
- Connectivity
- 4G LTE cellular with a built-in eSIM, international coverage
- Cellular data
- Unlimited international data, included
- Data upload
- Once a day, with hourly consumption readings
- Setup
- No wiring, gateway or WiFi: online out of the box. Scan the QR code and set your alarms in about a minute
- Leak detection
- Leak-detection algorithm with alarms, plus consumption alarms
- Water cost
- Set your water price, with separate hot- and cold-season rates
- Subscription
- None for the first 5 years, then $1/month per meter
- Battery
- Sealed 3.6 V lithium, about 6 years at one upload per day
- Body
- Lead-free composite, safe for potable water
Water Flow Tracking
Precision ultrasonic water measurement.
Online Out of the Box
No wires, gateway or WiFi. Scan the QR code, set your alarms and consumption limits in about a minute, and the meter reports on its own over its built-in eSIM.
Leak Detection & Alarms
A leak-detection algorithm reads the hourly consumption data and raises an alarm when water keeps flowing: the slow trickle a mechanical meter misses.
Built for Fluid Management
Commercial Buildings
Read every suite, tenant line or main remotely and rank them by consumption. No site visits and no gateway.
Irrigation & Agriculture
Ensure accurate crop watering and track system efficiency without manual readings.
