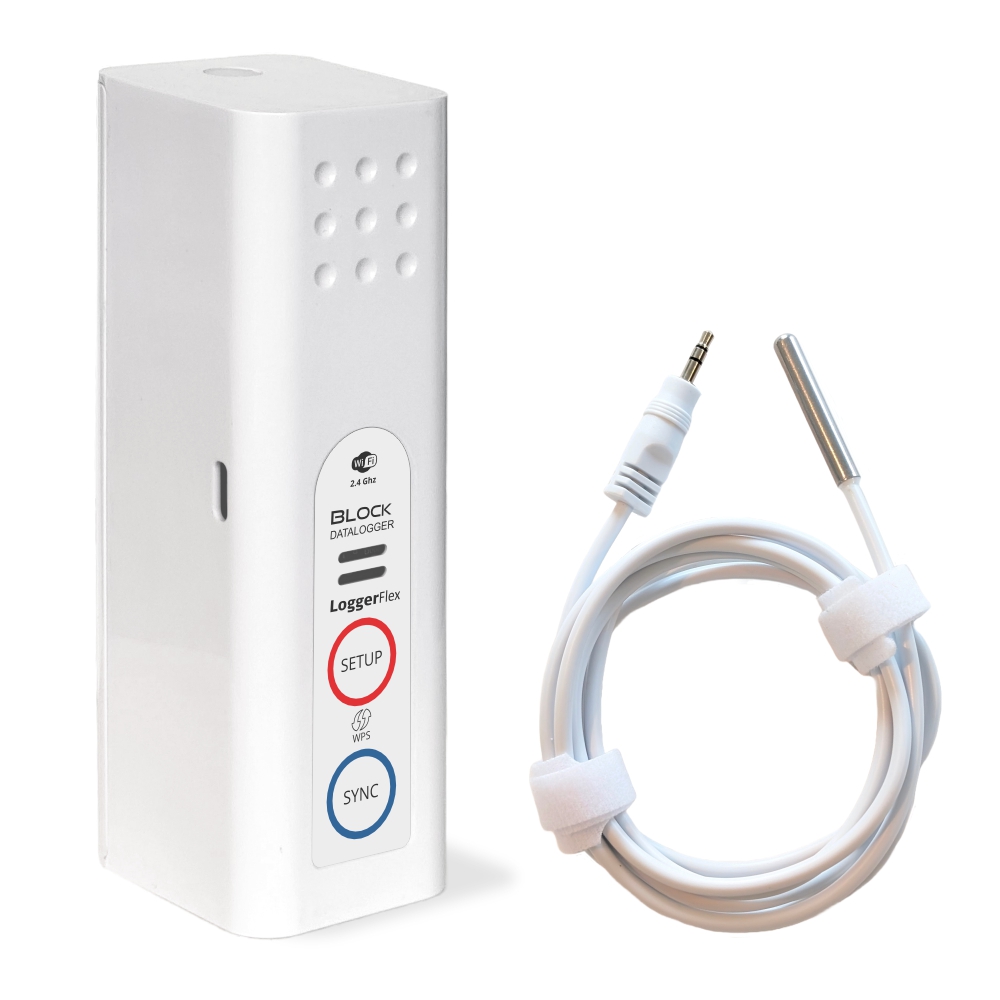

“ThermoLinc Basic” Monitoring Solution

Internal Power Supply: AA batteries (non-rechargeable 4 x AA Alkaline)

External Power Supply: USB-C 5VDC (charger and cable not included) – Device automatically switches between battery and external power when plugged in and reverts to the battery when unplugged

Interface: 2.4 GHz WiFi + Real-time Long range Global Connect

Internal Memory: Stores up to 32,000 records with automatic cloud syncing via WiFi for unlimited continuous recording. The device can operate without WiFi until the internal memory is full. For example, with a 10-minute recording interval, it can function for 7.5 months without WiFi.

Cloud Storage: Unlimited cloud storage for all recorded data.

Advance Alarm function :

• Immediate Alarm: Real-time email, text message, and automated phone call alarms to multiple recipients if any parameter falls below or exceeds the set threshold.
• Delay for Alarm: Up to 24-hour delay can be set to notify only if measurements remain out of range for a specified period, reducing false alarms.
• Trend Detection: Sends email alarms if a drift beyond a certain adjustable percentage is detected over a specific adjustable period.

Recording (Sample) Intervals: Adjustable from 1 minute to 30 minutes (down to 2 seconds or up to 120 minutes upon request).

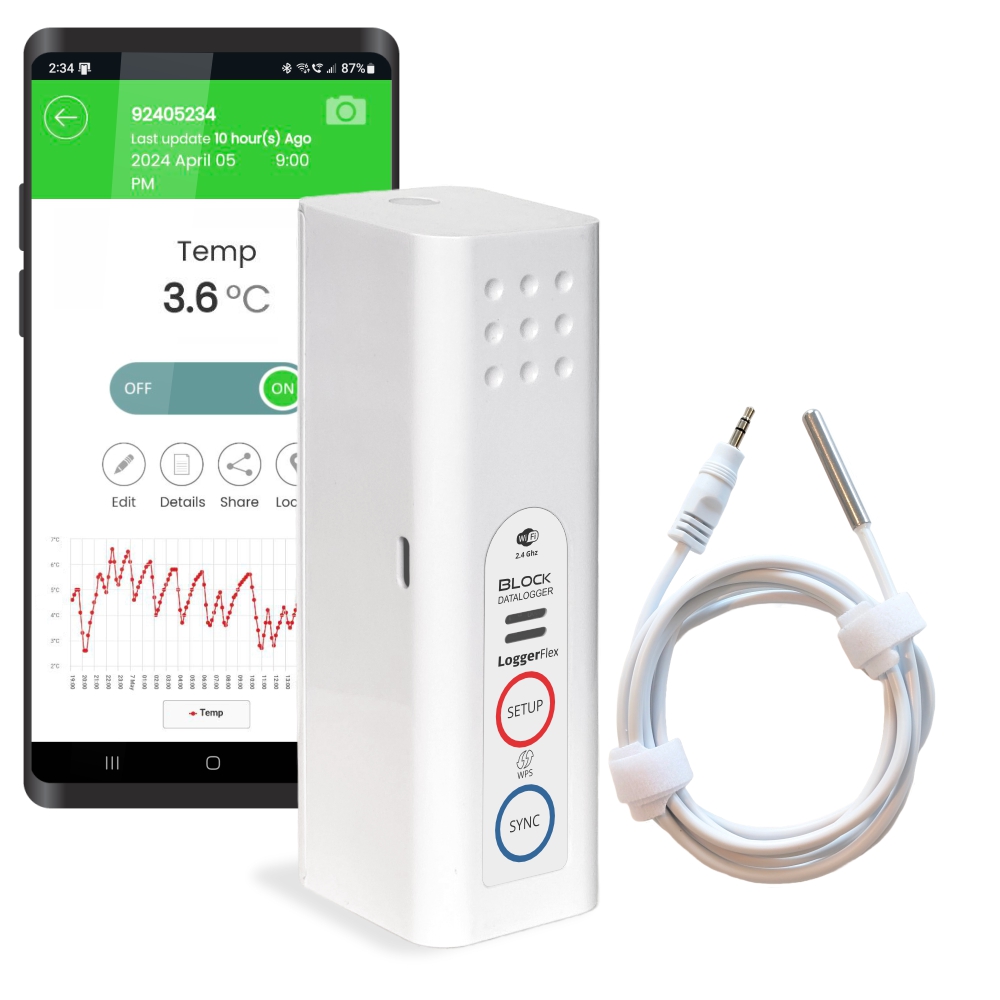

Powerful Advanced PWA: Automatically detects screen size and loads the mobile or desktop version. Provides data analysis and generates various reports tailored to different use cases and industries.

Remote Access: Records are securely stored in the cloud and accessible from any device without range limits.

Sharing Access: Unlimited team members can access alarms, records, reports, and graphs.

Data Safety and Security: Data is stored in a tamper-proof format (FDA-compliant) and backed up daily.

End-to-End Encryption: All transactions between the logger, server, and users are fully encrypted.

Digital Tracing: All interactions between the user, web application, and data logger are securely recorded in a tamper-proof format for future audits.

Hardware

IEEE 802.11b/g/n
FCCID WiFi Products: 2AC7Z-ESP32WROOM32E
FCCID Cellular Products: 2AC7Z-ESP32WROOM32E + 2AJYU-SIM7000G
CE
EN 61326-1
EN 61010
EN 12830
ROHS

Application

FDA CFR 21 part 11

Device only (Excluding External Sensors)

Net Weight: 185 gr (6.5 Oz)

Gross Weight: 200 gr (7 Oz)

Dimensions: H=133, W=42, L=52 mm (H=5¼, W=1⅝ L=2 inches)

Package Dimensions: H=140, W=46, L=57 mm (H=5½, W=2, L=2¼ inches)
